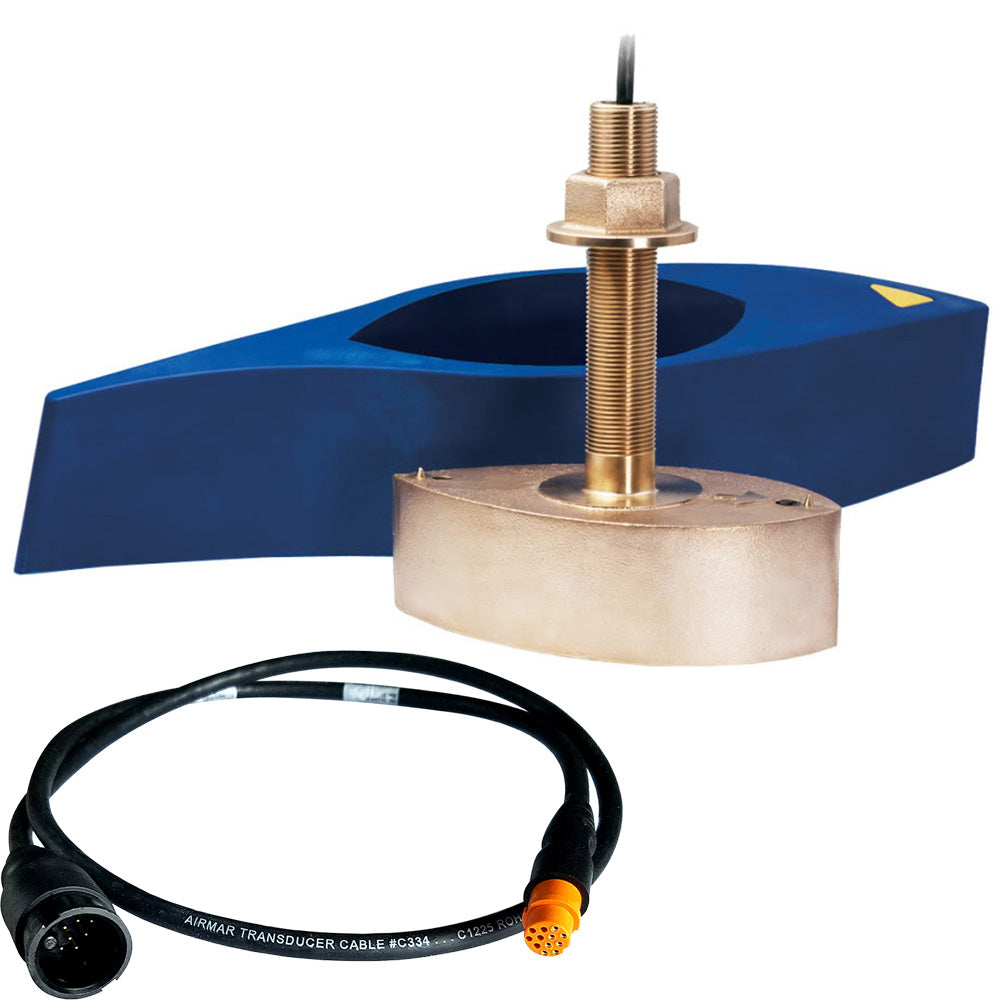

Airmar B275LH-W Bronze Thru-Hull f/Garmin w/12-Pin Connector [B275C-LHW-12G]

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

Features:

• Garmin 12-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1KW of power for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000')
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 152 m (500')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper water column
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
• Patented Xducer ID® technology

Specifications

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Fishing, Commercial Fishing
• Connector: Garmin 12-Pin
• Country of Origin: USA
• Cross Reference: 010-12183-20
• Deadrise Range: Up to 28° with fairing
• Display Connector: 12G
• Frequency Band: Low-High Wide
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25°
• Low Frequency: 42-65 kHz
• Low Frequency Beamwidth: 25°-16°
• Material: Bronze
• Max Deadrise: Up to 20° with fairing
• Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
• Mix and Match Series: 12-Pin Chirp
• Sensor Connector: MMC
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No
• Weight: 7.3 kg (16 lbs.)
• Power Rating: 1 kW
• Max Deadrise Angle: 20°
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Mounting Style: Thru-Hull with Fairing
• Max Vessel LOA: 8 m (25') and above
• Hole Size: 30 mm (1-3/16")
• Usable Shaft Length: 121 mm (4.75")
