Blue Sea Systems  |  SKU: 4302-BLU

Blue Sea 4302 WeatherDeck Water Resistant Fuse Panel - 2 Position - Grey [4302]

$50.99 $74.39
Shipping calculated at checkout.

Delivery and Shipping

All orders placed before 3 PM EST ship the same day

We offer multiple shipping options to ensure you get the part you need at a discount.

Best Way -$11.97

Ground -$14.69

2nd Day Air -$25.89

Overnight -$59.99

In addition, we can ship on your account or via a preferred method upon request.

Found a better price? Need faster shipping?

Call or email! 919-951-4313 or sales@boaterstop.com

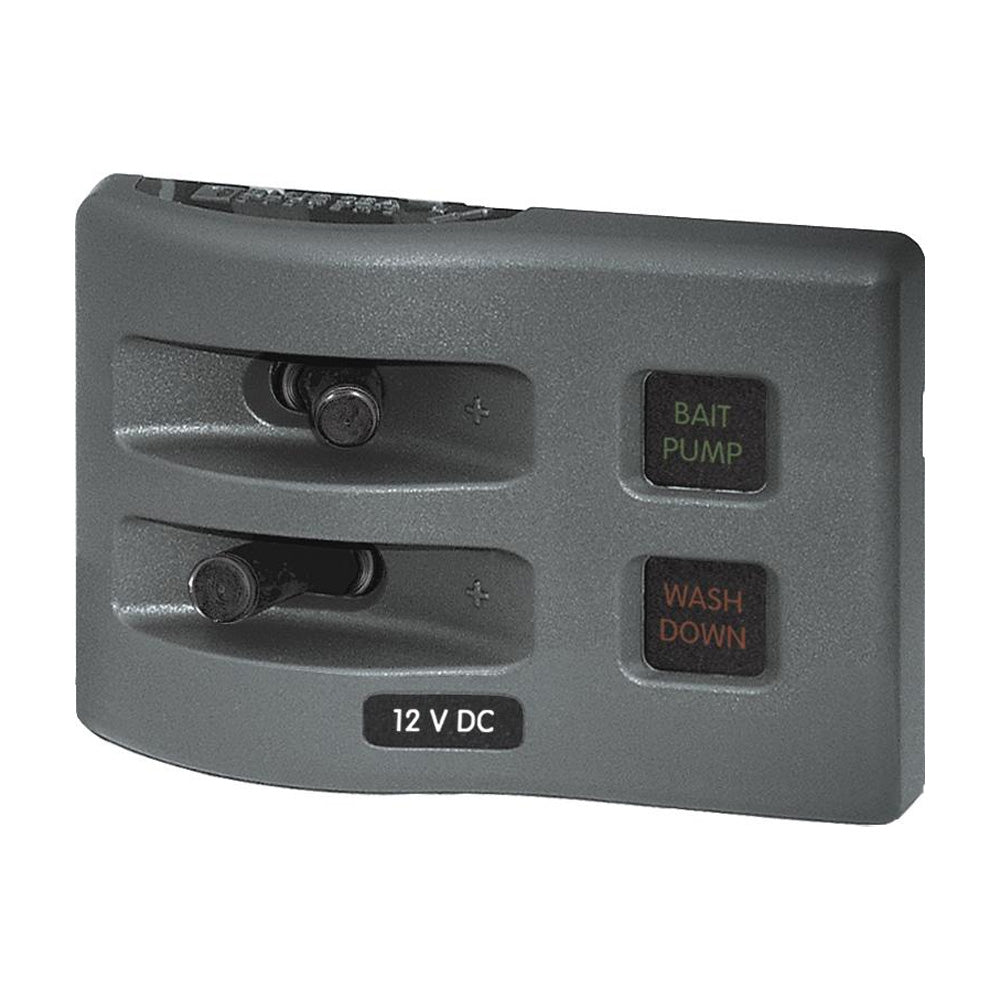

WeatherDeck™ Water Resistant Fuse Panel

PN: 4302

Color: Gray

Features:

  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 – protected against immersion up to 1 meter for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label back lighting circuit for remote switching and dimming
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

  • Weatherproof: Waterproof
  • Positions: 2
  • Nominal Voltage: 12v DC
  • Circuit Protection: Fuse
  • Maximum Amperage: 15A @ 12v DC (per circuit)
  • Panel Cumulative Rating: 30A
  • Backlit Label: Bicolored LED
  • Backlighting Amperage: 10mA/illuminated Circuit
  • Backlighting Voltage: 12v DC
  • Height: 2.6"
  • Width: 3.88"
  • Depth: 2.5"

Included:

  • (2) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
  • (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
  • (2) 5242 ATO/ATC Fuse - 15 Amp

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Waterproof
  • AC/DC: DC
  • Max Breaker Quantity: 2
  • Voltage: 12v
  • Box Dimensions: 5"H x 6"W x 6"L WT: 0.5 lbs
  • UPC: 632085043025

Quick Guide (pdf)
