Blue Sea Systems  |  SKU: 7085-BLU

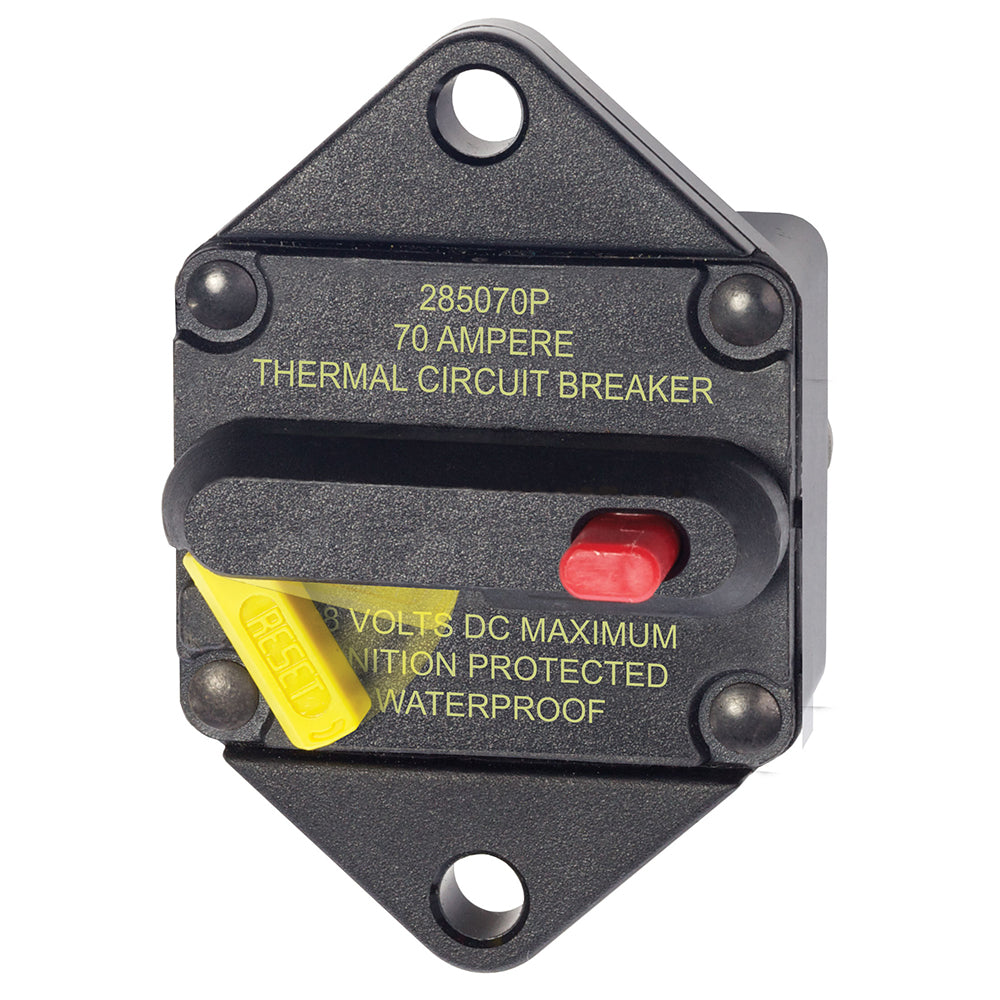

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount (285 Series)

$44.99 $65.51
Shipping calculated at checkout.

Delivery and Shipping

All orders placed before 3 PM EST ship the same day

We offer multiple shipping options to ensure you get the part you need at a discount.

Best Way -$11.97

Ground -$14.69

2nd Day Air -$25.89

Overnight -$59.99

In addition, we can ship on your account or via a preferred method upon request.

Found a better price? Need faster shipping?

Call or email! 919-951-4313 or sales@boaterstop.com

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip


* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating t3,000A @ 48V DC*
Maximum Voltage Rating t48 Volts DC
Operating Temperature Range t-40°C to 85°C
Circuit Breaker Type tThermally Responsive Bi-metal blade
Circuit Breaker Class tType III - Switchable / Manual Reset - Trip Free
Terminal Stud Size tM6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque t50 in-lb
Mounting Holes tAccept 1/4" (M6) screw
Weight Lb (Kg) t0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 70a
  • Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs
  • UPC: 632085070854

Brochure (pdf)
