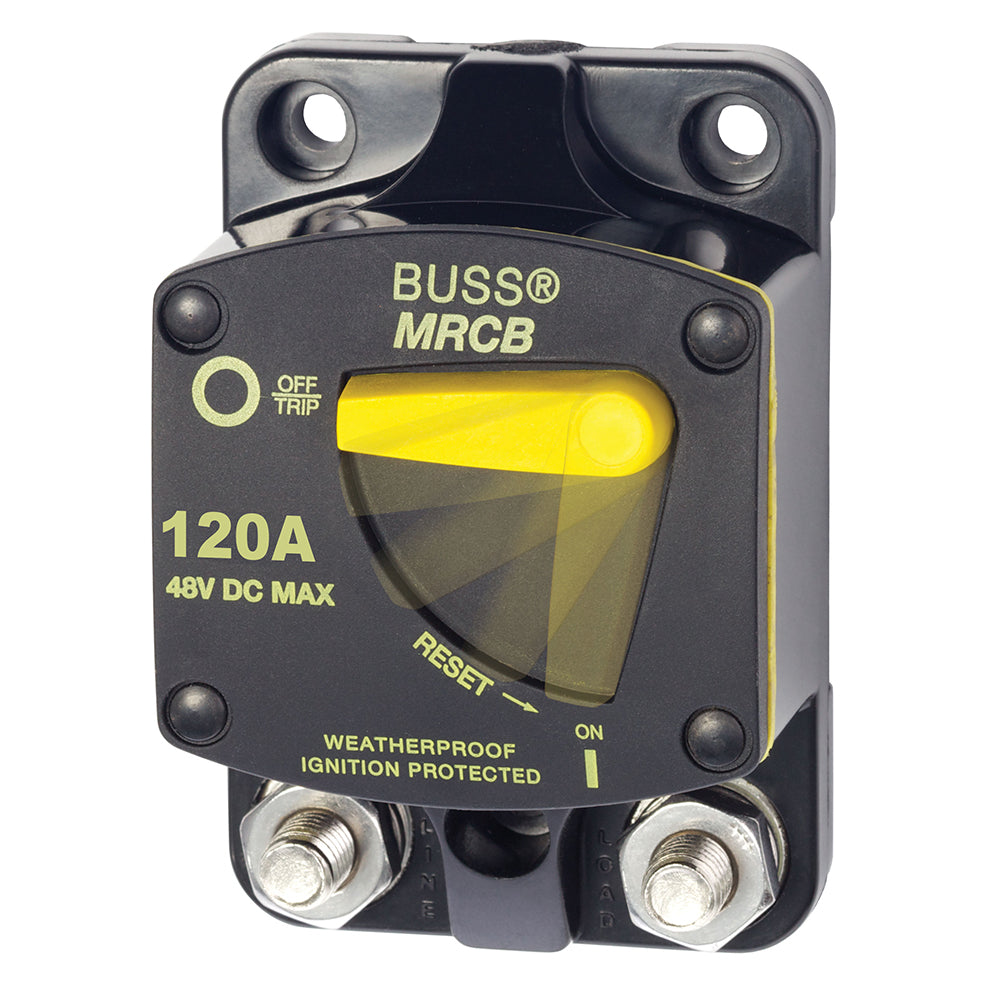

Blue Sea 7146 187 Series Thermal Circuit Breaker (120A)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
187 - Series Thermal Circuit Breakers - Surface Mount
120 Amp Circuit Breaker
PN: 7146
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - safe for installation aboard gasoline powered boats
Specifications | |
Circuit Breaker Class: | Type III - Switchable / Manual Reset - Trip Free |
Type: | Thermally Responsive Bi-Metal Blade |
Case Material: | Thermoset Polyester |
Voltage Rating: | 48 Volts DC Maximum |
Interrupt Rating: | 5,000 Amperes @12 Volts DC |
3,000 Amperes @24 Volts DC | |
1,500 Amperes @42 Volts DC | |
Operating Temperature Range: | -25C° to +82C° |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 120a
- Box Dimensions: 2"H x 4"W x 5"L WT: 0.5 lbs
- UPC: 632085071462
