Blue Sea Systems  |  SKU: 7713-BLU

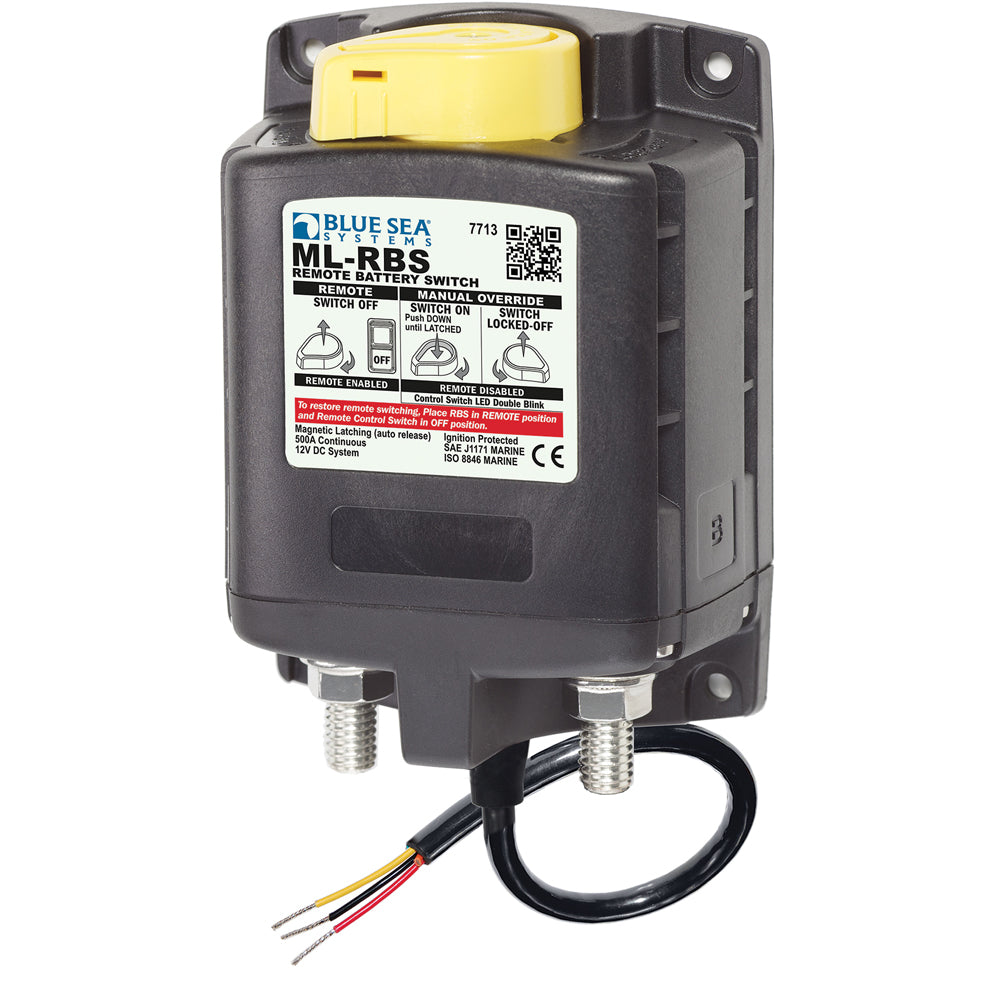

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release (12V)

$223.99 $331.68
Shipping calculated at checkout.

Delivery and Shipping

All orders placed before 3 PM EST ship the same day

We offer multiple shipping options to ensure you get the part you need at a discount.

Best Way -$11.97

Ground -$14.69

2nd Day Air -$25.89

Overnight -$59.99

In addition, we can ship on your account or via a preferred method upon request.

Found a better price? Need faster shipping?

Call or email! 919-951-4313 or sales@boaterstop.com

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

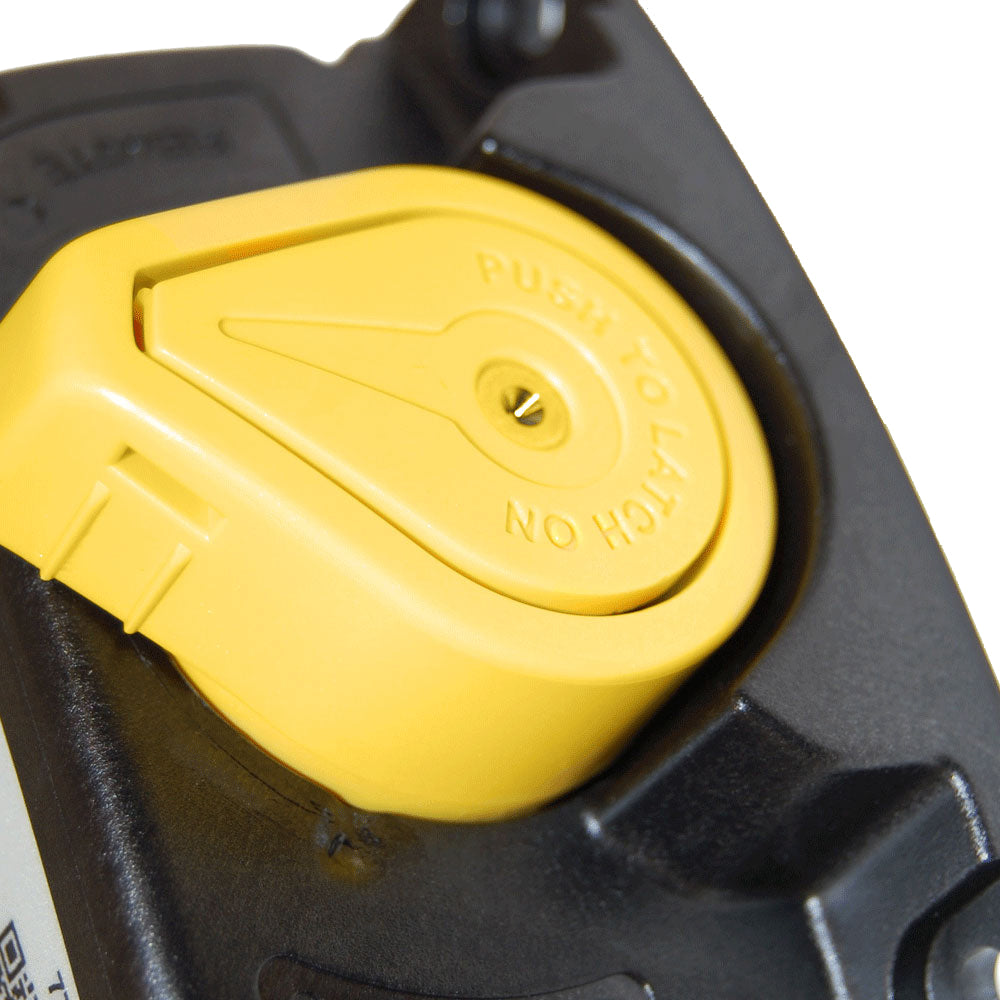

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/ 8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads


Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting:t#10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state:t<7A (40 ms)
Control Circuit Voltage:t10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: t700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature:t-10° C
Maximum Operating Temperature:t50° C
Cable Size to Meet Ratings:t2x (4/0)
Live Current Switching:t300A @ 12V DC 10,000 Cycles
Master Control Switch Capability:tYes
Mechanical Endurance:t100,000 Cycles
Switching Cycles:t100,000
Terminal Ring Diameter Clearance:t1.18" (29.97mm)
Terminal Stud Length:t0.875" (22.23mm)
Terminal Stud Size:t3/8-16 (M10)
Terminal Stud Torque:t140 in-lb (15.82 Nm)
Weight:t1.75lb (0.79 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Lockable: Yes
  • Continuous Amperage: 500a
  • Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs
  • UPC: 632085077129

Owner's Manual (pdf)
Brochure (pdf)
