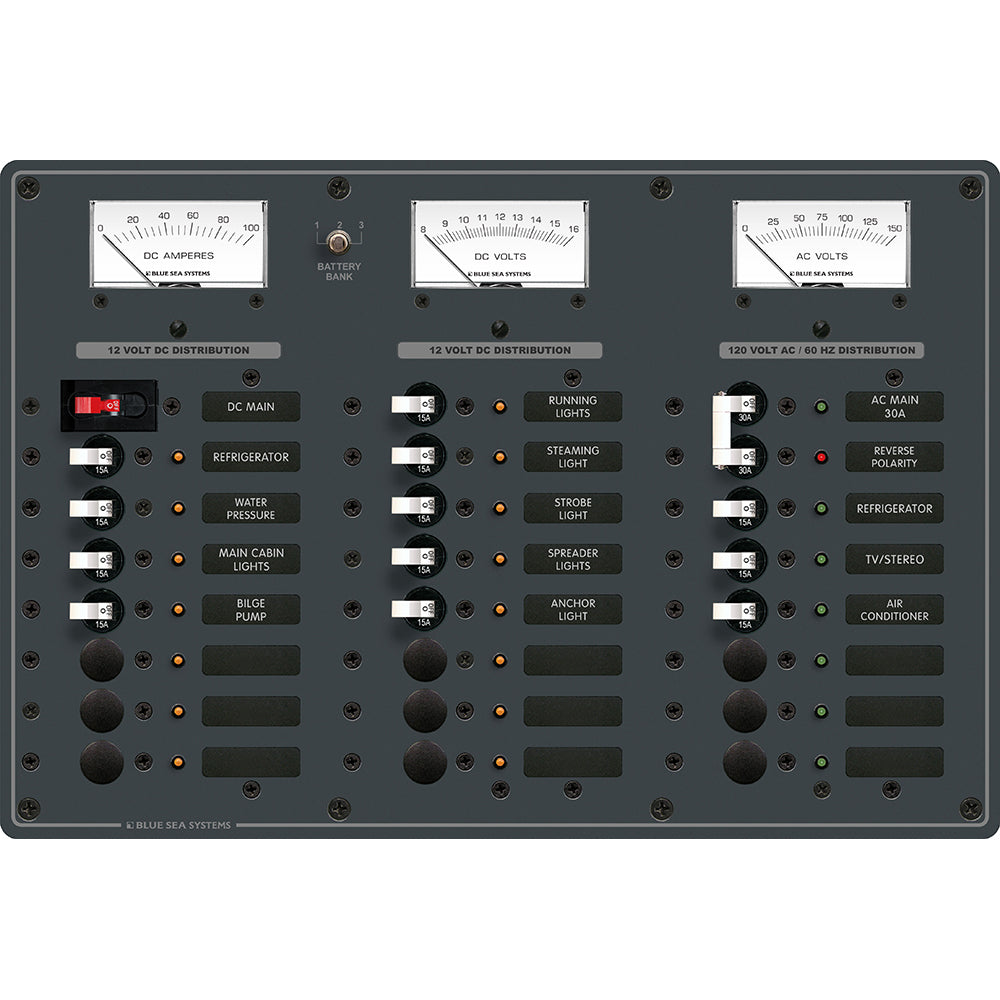

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches [8084]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
![Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches [8084]](http://www.boaterstop.com/cdn/shop/files/14573XL.jpg?v=1686344408&width=112)
Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Cir...
8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC
AC Features:
- Red reverse polarity indicating LED
- Ready for installation of optional 4029 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Main +6
- DC Positions: Main +15
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (3) 15A AC Circuit Breakers
- (1) 100A - (9) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 6 AC / 15 DC
- AC/DC: Both
- Voltage: 120v/12v
- Box Dimensions: 7"H x 15"W x 23"L WT: 8.6 lbs
- UPC: 632085080846
Owner's Manual (pdf)
