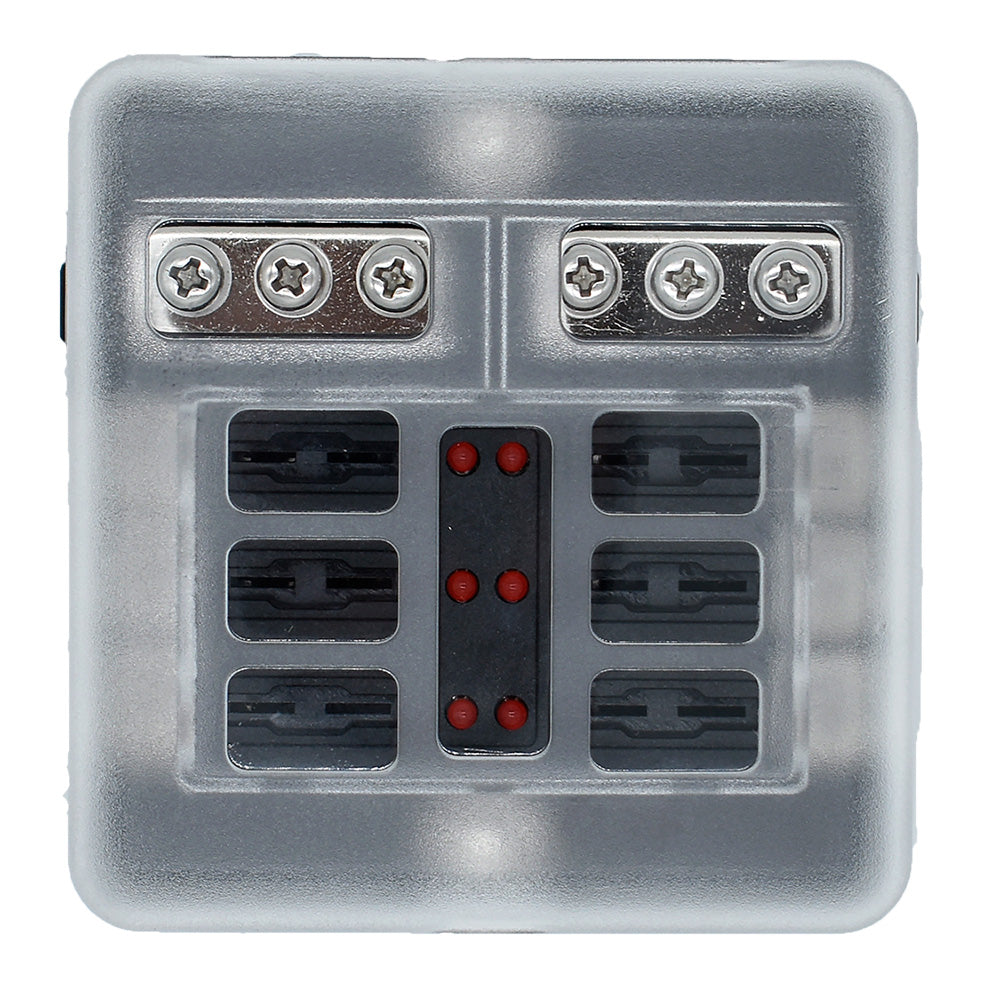

Bluewater 6 Position Fuse Block w/LEDs [3200-0001-006]
6 Position Fuse Block with LEDs
This 6-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blows—so you can identify and address issues at a glance.
Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. It’s compatible with 88 Series breakers.
The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695” holes, spaced 2.825” H x 2.725” W for the 6-position block.
Whether you’re upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.
Specifications:
- Max Voltage: 48V DC
- Input Current: 100A
- Breaker Type: 88 Series/BW 38 Series
- Input Terminal Rating: M5 Threaded Studs (100A max)
- Output Terminal Rating: M4 Threaded Studs (25A max)
- Material: Stainless Steel/Nickel-plated Copper/Polycarbonate
Specifications:
- Amperage: 100
- Fuse Type: ATO/ATC
- Type: Fuse Blocks
- Box Dimensions: 2"H x 6"W x 10"L WT: 0.4 lbs
- UPC: 810196332249
