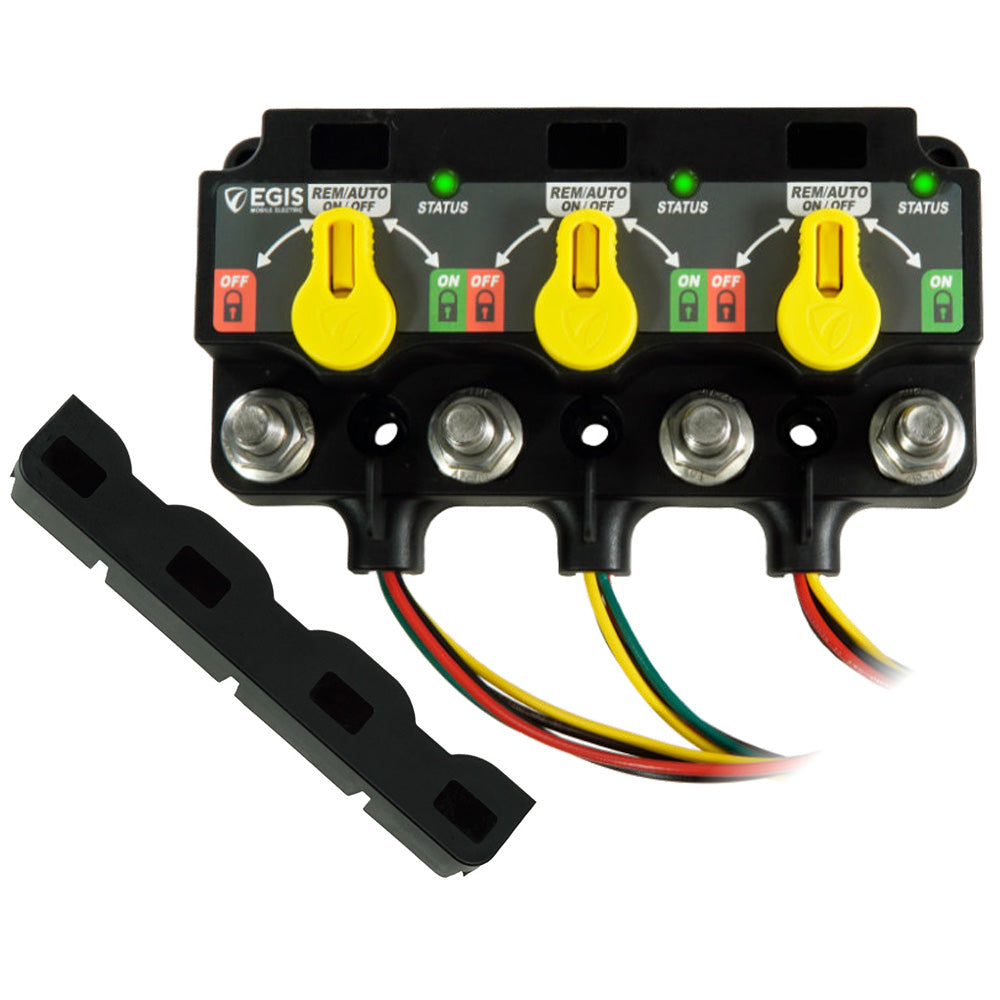

![Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM [8630-1535]](http://www.boaterstop.com/cdn/shop/files/114203XL.jpg?v=1783370177&width=1000)
Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM [8630-1535]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM [8630-1535]
Boater Stop is NOT an authorized distributor of Dometic products.
XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM
Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings
500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing
Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect
Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing
Local and Remote LED Indicators Per Relay
Mechanical-Only Battery Switch Option for One or Multiple Relay Positions
Features:
- Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
- Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
- Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
- Diagnostic Feedback: Via optional external LEDs control lines and on-board LEDs for each relay
- Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
- Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
- Meets Stringent OEM Standards for electrical transient self-protection
- 4 Year Industry-Leading Warranty
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 6"W x 8"L WT: 2.75 lbs
- UPC: 850074331698
Brochure (pdf)
