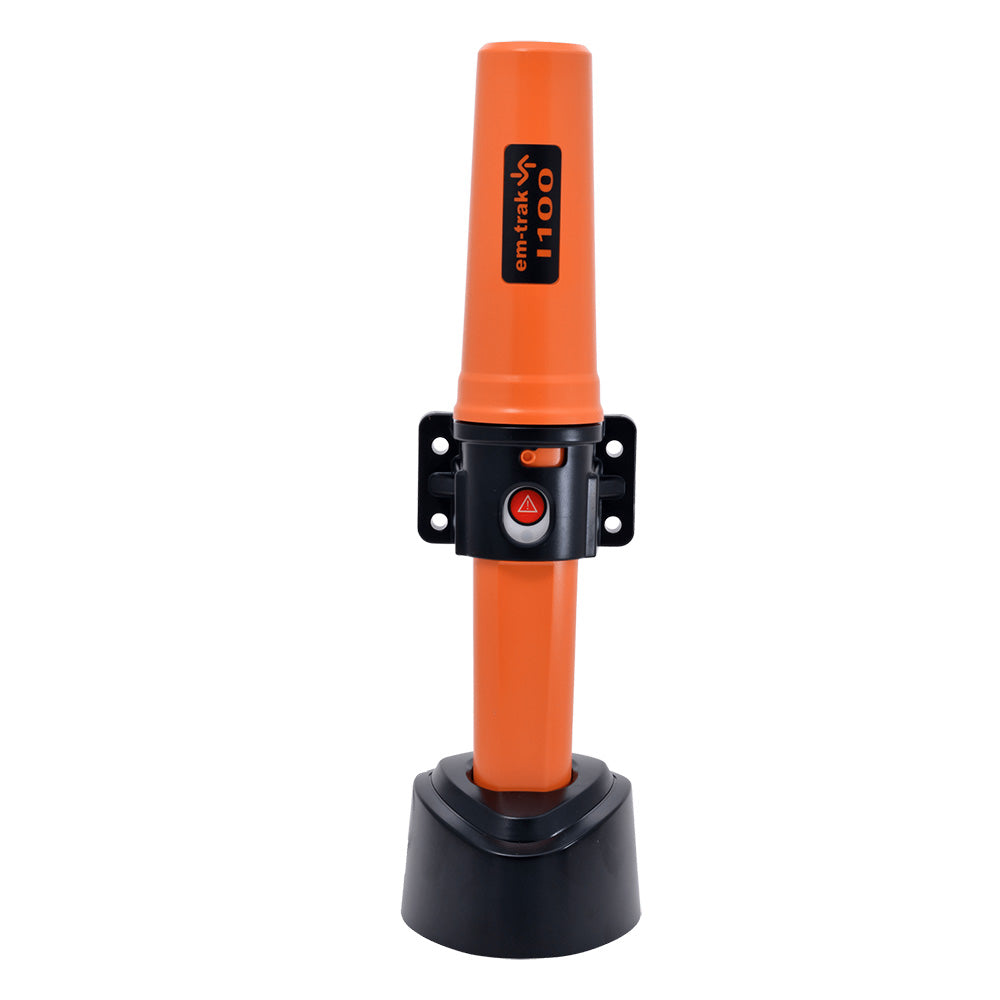

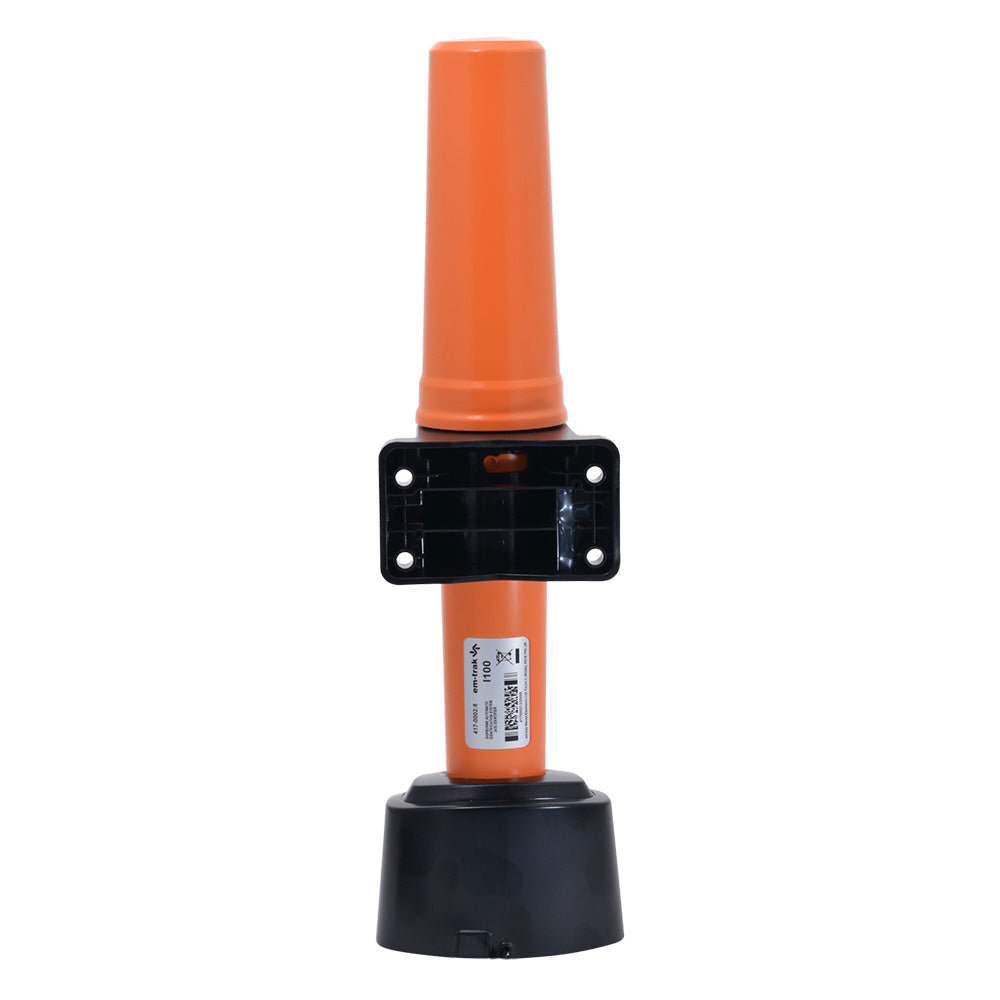

I100-X Small Vessel Tracker
The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.
I100-X can power itself using its own internal rapid recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source such as an engine, battery, or solar, with the battery then acting as a backup.
I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.
Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.
Features:
- Certified AIS Class B Transponder
- 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
- It takes only 5 hours to completely recharge
- Rugged IPX8 design ensures the operational performance
Physical & Environmental Specifications:
- Size (H x W): 370 x 67 mm
- Weight: 355g
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Ingress protection: IPx8 (1.1m 30 mins)
Electrical Specifications:
- Battery Capacity: 2300mAh
- Battery Type: 3.7V Li-Ion rechargeable
- Battery Life (default operating conditions): 120 hours
Standards Compliance:
- AIS Standards: IEC 62287-1 Ed. 3. ITU-R M.1371.5
- Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
- Environmental Standards: IEC 60945 Ed. 4
- GNSS Performance Standards: IEC 61108-1 Ed 2.0
GNSS:
- Systems Supported: GPS & GLONASS
- Channels: 72
- Time to First Fix from Cold Start: 26s
VHF Transceiver:
- VDL Access Scheme: CSTDMA
- Operating Frequency: 156.025MHz – 162.025MHz
- Channel Bandwidth: 25kHz
- Receivers / Transmitters: 1 x transmitter
- AIS Transmitter Power: 2W (33dBm radiated)
User Interface:
- Buttons: SOS
- Indicators: Status indicator
Charging Dock:
- Size (H x W x D): 110mm x 120mm x 78mm
- Weight: 360g
- Power Supply: 115V / 240V AC
Configuration Dock:
- Size (H x W x D): 110mm x 120mm x 78mm
- Weight: 360g
- Power Supply: 115V / 240V AC
- PC Interface: USB (cable supplied)
In the Box:
- 1 x Identifier
- 1 x Vessel Bracket and a Fixings Pack
- 1 x Charging Dock
*NOTE: You will also require a configuration dock product code: 417-0074. This is used to program the unit before deployment.
Specifications:
- Frequency: 156.025MHz u2013 162.025MHz
- Operational Life (Hours): 120.00
- Box Dimensions: 5"H x 10"W x 17"L WT: 3.6 lbs
Owner's Manual (pdf)
