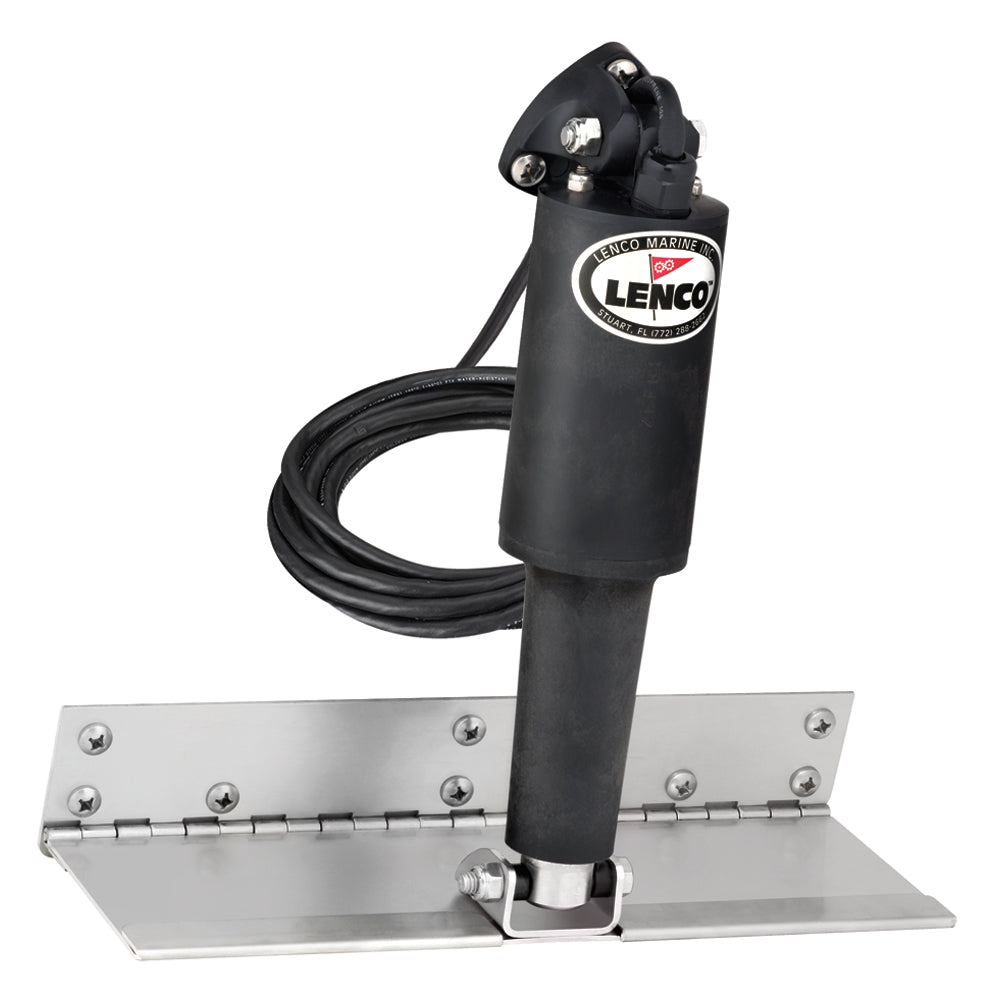

Lenco Limited Space Trim Tab Kit w/o Switch Kit (4"x12")
Limited Space Trim Tab Kit- Standard Actuator
12-Volt Actuators
Lenco Electric Limited Space Trim Tab Kits are engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. For boat lengths 14' to 25'.
Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.
Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8" diameter hinge pin. Upper and lower high-impact corrosion-proof mounting brackets with mechanical cable gland seal.
Kit Contents
- 2 each of 11-gauge 304 stainless steel trim tab blades
- 2 each of #15054-001 Standard actuator with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (116) upper mounting bracket with gland seal
- 1 each of the Lenco owner's / installation manual
- All necessary stainless steel mounting hardware
Specifications
- Trim Tab Kit: Limited Space
- Blades: 11 Gauge Stainless Steel
- Finish: Smooth
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Made in: Stuart, Florida U.S.A.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Actuator Type: Electro-Mechanical
- Construction: Stainless Steel
- Box Dimensions: 6"H x 7"W x 13"L WT: 13.8 lbs
- UPC: 874847007108
Brochure (pdf)
