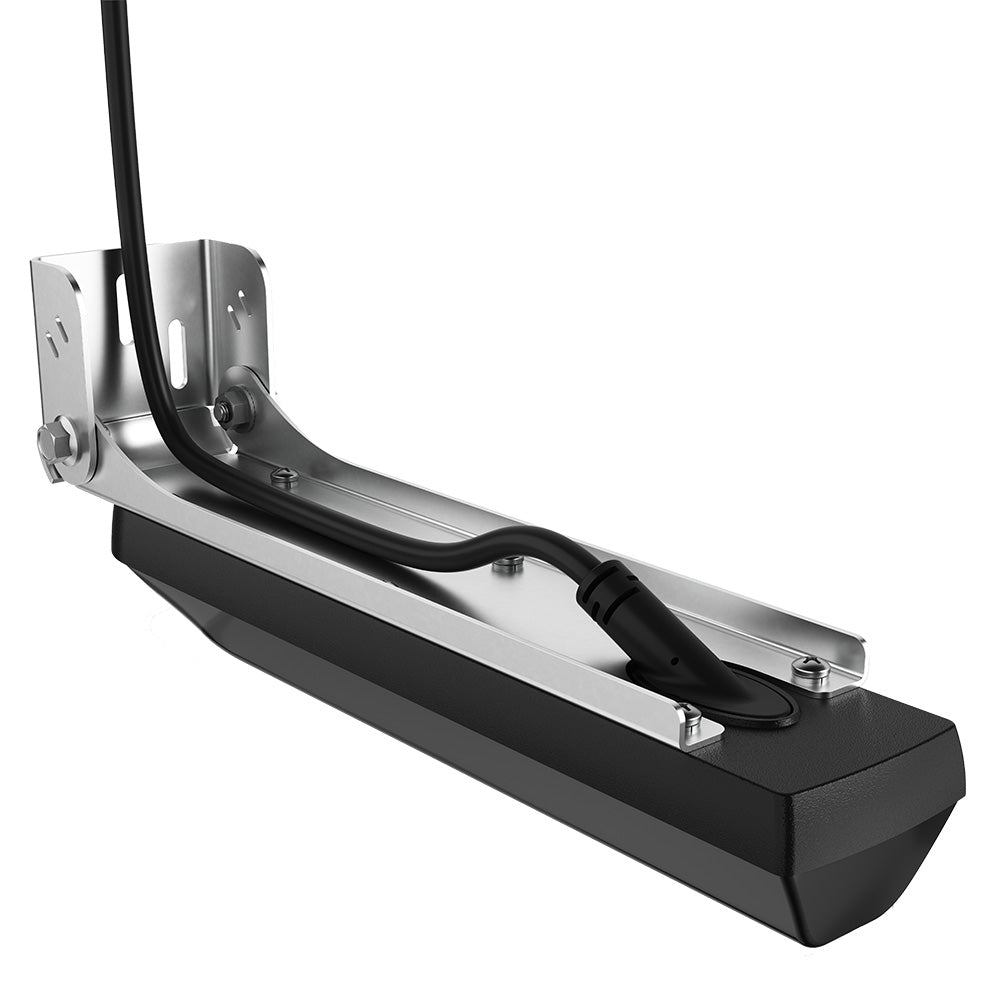

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-001]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-...
Boater Stop is NOT an authorized distributor of Dometic products.
Active Imaging HD™ 3-in-1 FishReveal Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy.
*requires S3100 sonar module for Fish Reveal SideScan
Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
- Lowrance CHIRP with superb clarity and target separation
- FishReveal™ with new SideScan* view as well as DownScan
- Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS.
*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO
Specifications:
- Cable Length (Feet): 25'
- Chirp: Medium/High
- Imaging: Standard/Down/Side
- Mounting Style: Transom
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 10"W x 14"L WT: 4.35 lbs
- UPC: 9420064130344
