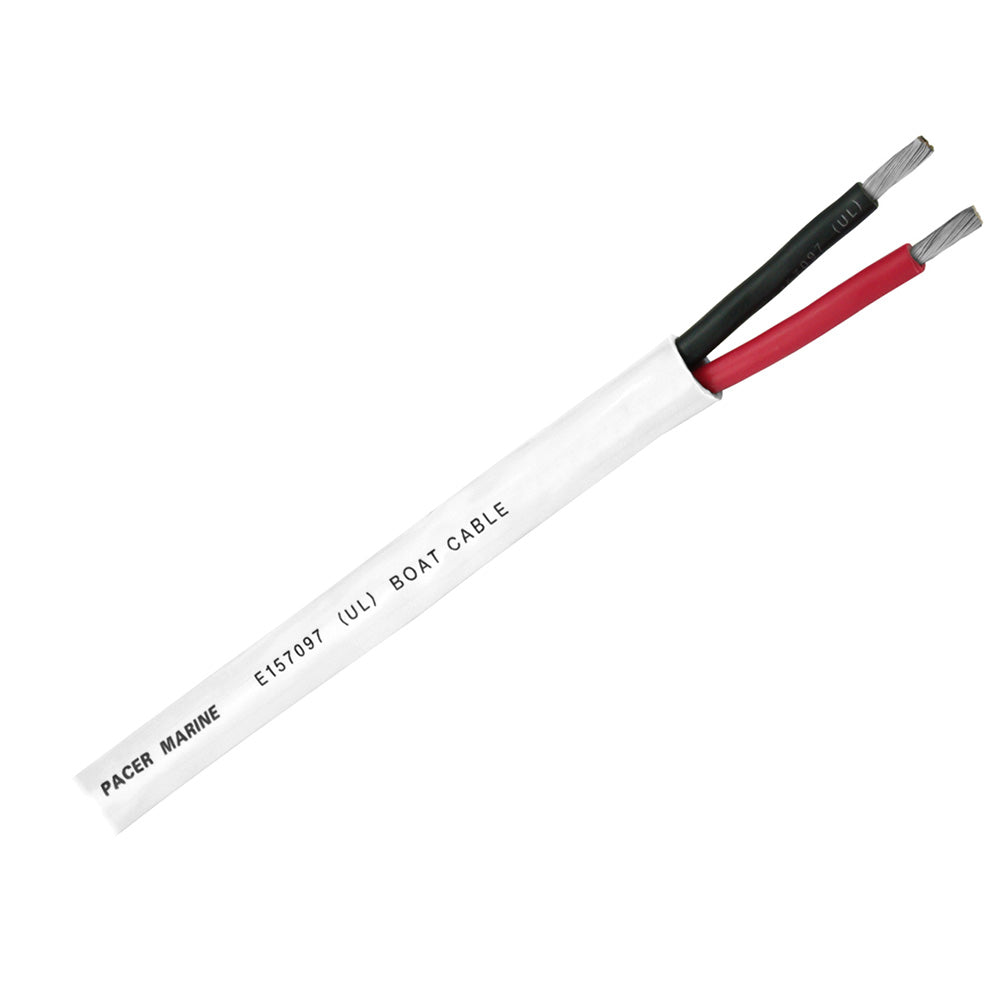

Pacer Duplex 2 Conductor Cable (100' 16/2 AWG)

Duplex 2 Conductor Cable - 100' - 16/2 AWG - Red, Black

Duplex boat cable is a two-conductor cable designed with corrosion-resistant conductors and durable insulation to withstand the harsh marine environment. Pacer’s duplex boat cable is designed with flexibility and longevity in mind. We know that wiring on a boat often occurs in areas with little space to maneuver. That is why we focused on creating a highly flexible boat cable without compromising its durability.

Features:

• 16 AWG duplex boat cable
• 100 ft. of cable
• No. of Conductors: 2
• Stranded, tinned copper conductors
• Annealed Finely Stranded Tinned Copper ASTM B172 Class K
• Built for durability, fl­exibility, and longevity in the harshest marine environments
• So ­flexible that you can tie it into a knot without compromising any of its qualities
• Proprietary insulation ensures the highest level of protection available
• Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals

Specifications:

• No. of Conductors: 2
• Conductor Colors: Black & Red
• Conductor Stranding: 26/.0100
• Jacket Color: White
• Jacket Thickness (inch): 2 conductors @ 0.035"
• Nom. Cable O.D.(inch): 2 conductors @ 0.200" x 0.330"

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications

Compliances:

• UL Standard 1426
• RoHS Compliant
• ABYC: E-11.14
• Coast Guard: 33 CFR part 183
• UL compliant

Specifications:

• Color: Black/Red
• Gauge: 16/2 AWG
• Length (Feet): 100'
• Box Dimensions: 7"H x 7"W x 7"L WT: 6.8 lbs
• UPC: 840248215862
