![Raymarine Type 1 Pump 12V [M81120]](http://www.boaterstop.com/cdn/shop/files/12743XL.jpg?v=1686343189&width=1000)

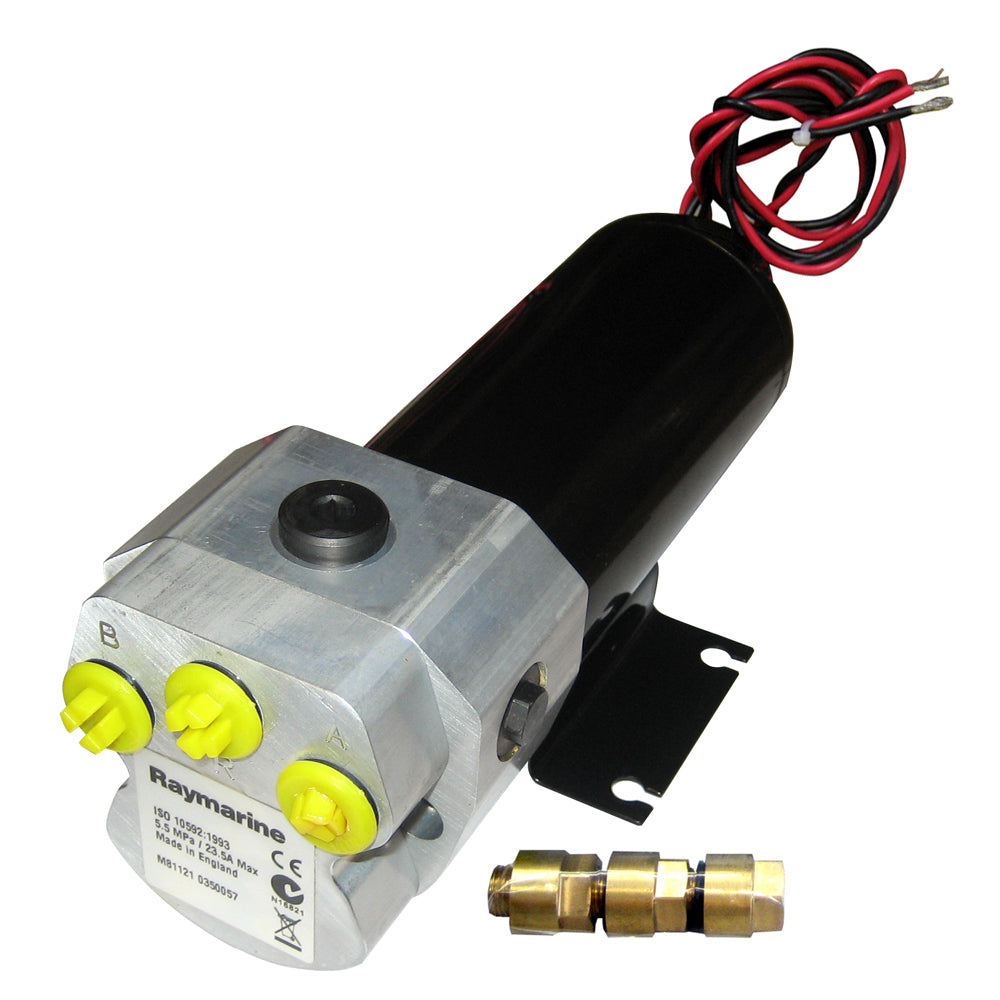

Raymarine Type 1 Pump 12V [M81120]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
![Raymarine Type 1 Pump 12V [M81120]](http://www.boaterstop.com/cdn/shop/files/12743XL.jpg?v=1686343189&width=112)
Raymarine Type 1 Pump 12V [M81120]
Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.
The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack
Corepack Used S1 or S1G
Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)
(no load) 67in/min (1000cc/min)
Corepack Used S2 or S2G
Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)
Peak Flow Rate
(no load) 67in/min (1000CC/min)
Specifications:
- Type: Pumps/Drives
- Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs
- UPC: 023193811208
Owner's Manual (pdf)
